Two Post Parking Lift: 7 Essential Planning & Buying Tips

2025-07-21
two post parking lift configuration

A two post parking lift can help property developers, contractors, parking consultants, and garage owners increase vehicle storage capacity without expanding the building footprint. By positioning one vehicle above another, this type of mechanical parking equipment makes better use of available vertical space.

However, choosing the right two post parking lift is not simply a matter of checking its rated capacity. Available ceiling height, vehicle dimensions, foundation conditions, parking frequency, and vehicle access all affect whether a particular configuration will work. A proper site assessment helps determine whether a two post parking lift is suitable for the intended application.

For residential garages, commercial parking facilities, dealerships, and mixed-use developments, the right solution starts with understanding the site and its operational requirements.

This guide explains how two-post parking lifts work, where they are suitable, how to compare configurations, and what to check before selecting equipment for your project.

Table of Contents

What Is a Two Post Parking Lift?

A two post parking lift is a mechanical parking system that uses two vertical support posts and a lifting platform to store one vehicle above another.

Unlike a conventional automotive service lift, which typically raises a vehicle by engaging designated lifting points on its chassis, a parking lift uses a platform to support the vehicle during storage. The exact platform design, lifting mechanism, and safety configuration depend on the model.

A typical system includes:

  • Two supporting posts: The main structural supports for the lifting assembly.

  • Lifting platform: The surface on which the vehicle is parked.

  • Hydraulic power unit: Supplies the power required to raise and lower the platform.

  • Mechanical safety locks: Hold the platform at designated locking positions.

  • Control system: Manages operation and incorporates the specified electrical safety devices.

During operation, the vehicle is driven onto the platform. The operator activates the lifting system, and the platform moves to its designated elevated position. The lower parking space can then be used by another vehicle.

The retrieval process depends on the system design. In many two-level configurations, the lower vehicle must be moved before the upper vehicle can be lowered. This is an important operational consideration for residential garages and commercial parking facilities.

A two post parking lift is therefore best evaluated as a parking and vehicle-storage solution, not simply as a lifting machine.

Where Can Two Post Parking Lifts Be Used?

The suitability of a two-post parking lift depends on the available space, vehicle turnover, and how frequently users need access to individual vehicles.

Residential Garages

For homeowners with more vehicles than available ground-level parking spaces, a two-post parking lift can create an additional parking position within an existing garage.

Typical applications include:

  • Single-family homes and villas.

  • Private garages with limited floor space.

  • Secondary vehicle storage.

  • Garages where a conventional parking extension is not practical.

Residential projects need particular attention to ceiling height, vehicle dimensions, garage-door movement, and the access sequence for upper and lower vehicles.

For a more detailed residential comparison, see our Residential 2 Post Car Lift Buyer’s Guide.

For homeowners considering a two post parking lift, the main priorities are usually garage clearance, vehicle compatibility, ease of operation, and the amount of additional parking space required.

Commercial Parking Facilities

Developers and parking operators may use two-post parking lifts to increase the number of available parking positions within an existing or planned facility.

They can be considered for:

  • Multifamily residential developments.

  • Mixed-use buildings.

  • Commercial properties.

  • Private parking facilities.

  • Projects where additional excavation or construction would be difficult.

The key question is not simply how many vehicles can be stacked. Project planners also need to consider vehicle turnover, access routes, operating procedures, and the number of lifts required.

For commercial developments, a two post parking lift should be evaluated as part of the overall parking layout. The number of units, shared-post configuration, vehicle turnover, and access requirements all influence the final solution.

Car Dealerships and Vehicle Storage

Dealerships and vehicle-storage operators often need to accommodate more vehicles within a limited display or storage area.

A two-post parking lift can provide additional storage positions where vehicle dimensions, loading capacity, and access requirements are compatible with the equipment.

For high-turnover operations, the retrieval sequence and operator workflow should be assessed before selecting the configuration.

7 Essential Factors to Check Before Choosing a Two Post Parking Lift

Selecting a two post parking lift requires more than comparing product prices. Before choosing a model, project owners should review seven essential factors that affect equipment compatibility, installation conditions, parking efficiency, and long-term operation.

1. Available Ceiling Height

Ceiling height is one of the first measurements to check.

The relevant figure is the actual usable vertical clearance, not simply the floor-to-floor height shown on an architectural drawing.

The evaluation should account for:

  • The height of both vehicles.

  • The lifting platform and structural components.

  • The required lifting travel.

  • Ceiling beams, pipes, ducts, sprinklers, and lighting.

  • Any restrictions caused by garage doors or other overhead equipment.

A low-ceiling project may require a specially designed configuration. For example, SolidParking’s TP-200 uses a tilting platform design and has a minimum ceiling-height requirement of 2,900 mm under the current product specification.

This figure should not be treated as a universal requirement for all two-post parking lifts. The final clearance must be checked against the selected model and vehicle dimensions.

2. Vehicle Weight and Rated Capacity

The rated capacity of the equipment must be suitable for the vehicles that will actually use it.

When reviewing vehicle weight, consider:

  • Manufacturer-listed curb weight.

  • Potential vehicle variations.

  • SUVs and pickup trucks.

  • Electric vehicles with heavier battery packs.

  • Any project-specific loading requirements.

Do not select a lift based only on the average weight of the current vehicle fleet. A project may need to accommodate different vehicle types over its service life.

The selected model’s rated capacity must be checked against its technical documentation. The vehicle’s weight distribution and the equipment’s permitted loading conditions also matter.

3. Vehicle Length, Width, and Height

A vehicle can be within the rated weight limit and still be unsuitable for a particular platform.

Check the maximum permitted:

  • Vehicle length.

  • Vehicle width, including mirrors where relevant.

  • Vehicle height.

  • Wheelbase and tire position, where specified.

The upper vehicle also needs sufficient clearance from the ceiling and surrounding structures.

For mixed vehicle fleets, use the largest expected vehicle dimensions as part of the initial layout review rather than planning around the smallest vehicle.

4. Parking Frequency and Vehicle Access

Not every parking project has the same operating pattern.

A private garage may only require occasional vehicle retrieval. A commercial parking facility may need to handle more frequent movements throughout the day.

Ask:

  • How often will the upper vehicle need to be retrieved?

  • Can the lower vehicle be moved when required?

  • Will the same users operate the equipment?

  • Is there a designated operator or parking attendant?

  • How much time can the retrieval process reasonably take?

If independent and frequent vehicle retrieval is essential, a conventional two-level stacker may not be the best solution. Other mechanical or automated parking configurations may be more appropriate.

5. Available Floor Space and Layout

The equipment must fit the actual site, not just the nominal parking-space dimensions.

Review:

  • Parking bay width and length.

  • Post positions and structural clearances.

  • Vehicle approach and departure paths.

  • Walls, columns, doors, and other obstructions.

  • Maintenance and operating access.

  • The arrangement of adjacent parking lifts.

For multi-bay projects, the position of each support post can have a significant effect on the overall layout.

A site plan should therefore be reviewed before construction begins, especially when multiple units are installed side by side.

6. Foundation and Structural Conditions

The concrete floor is part of the equipment’s supporting structure. Its suitability cannot be determined by thickness alone.

The engineering review should consider:

  • Concrete thickness and strength.

  • Existing cracks or deterioration.

  • Slab condition and levelness.

  • Anchor type, embedment, and installation requirements.

  • Local structural conditions and load-bearing capacity.

  • The equipment manufacturer’s installation drawings.

A general foundation dimension found online should never replace the requirements for the specific lift model.

For more technical information, read our Two-Post Parking Lift Engineering Guide.

7. Safety Features and Supplier Support

A parking lift should be evaluated as a complete system, including its structural design, mechanical locking arrangements, hydraulic components, electrical controls, and installation instructions.

Depending on the model, relevant features may include:

  • Mechanical anti-fall locking positions.

  • Hydraulic overload protection.

  • Limit switches.

  • Photocell protection.

  • Emergency stop controls.

  • Key-operated controls.

The presence of a particular feature should be confirmed in the model’s technical documentation. A list of safety components alone does not prove that the complete system meets a particular standard.

Also evaluate the supplier’s ability to provide engineering drawings, installation guidance, commissioning support, spare parts, and after-sales service.

Single-Cylinder vs. Dual-Cylinder Systems

Two-post parking lifts can use different hydraulic lifting arrangements. SolidParking’s product range includes both single-cylinder and dual-cylinder configurations.

The number of hydraulic cylinders is one design characteristic, not a complete measure of equipment quality or safety.

ComparisonSingle-Cylinder ConfigurationDual-Cylinder Configuration
Hydraulic arrangementOne hydraulic cylinderTwo hydraulic cylinders
Lifting designDepends on the model’s transmission and balancing arrangementDepends on the model’s transmission and synchronization arrangement
Selection factorsRated capacity, platform design, and applicationRated capacity, platform design, and application
EvaluationCheck the complete lifting and locking systemCheck the complete lifting and locking system

For example, SolidParking’s TP-230H and TP-270H use single-cylinder configurations, while TP-270 and TP-320 use dual-cylinder configurations according to the current product lineup.

When comparing systems, ask the manufacturer for the relevant technical drawings and information about load transmission, synchronization, mechanical locking, and safety provisions.

The objective is to select a configuration that meets the project’s actual operating and structural requirements.

How Shared-Post Design Improves Parking Layouts

For projects requiring several adjacent parking lifts, shared-post design can help reduce the number of separate support posts.

Instead of installing two independent posts between every pair of lifting units, compatible models can be arranged to share intermediate posts.

When several two post parking lifts are installed side by side, shared-post design can help reduce duplicated support structures and improve the use of available parking width.

For example, a row of compatible shared-post units can be arranged with one additional support post as the row expands, rather than providing a completely separate pair of posts for every unit.

Potential advantages include:

  • Reduced duplication of support structures.

  • More efficient use of horizontal space.

  • A cleaner multi-bay layout.

  • Better coordination of equipment positions during project planning.

However, not every two-post model supports shared-post installation. Compatibility depends on the specific product design and the manufacturer’s approved configuration.

Shared-post planning should be completed before the foundation and parking layout are finalized. Post spacing, structural loading, vehicle clearance, and installation access must all be considered.

For a closer look at the configuration and its applications, see Two-Post Car Lifts: Shared-Post Design and Applications.

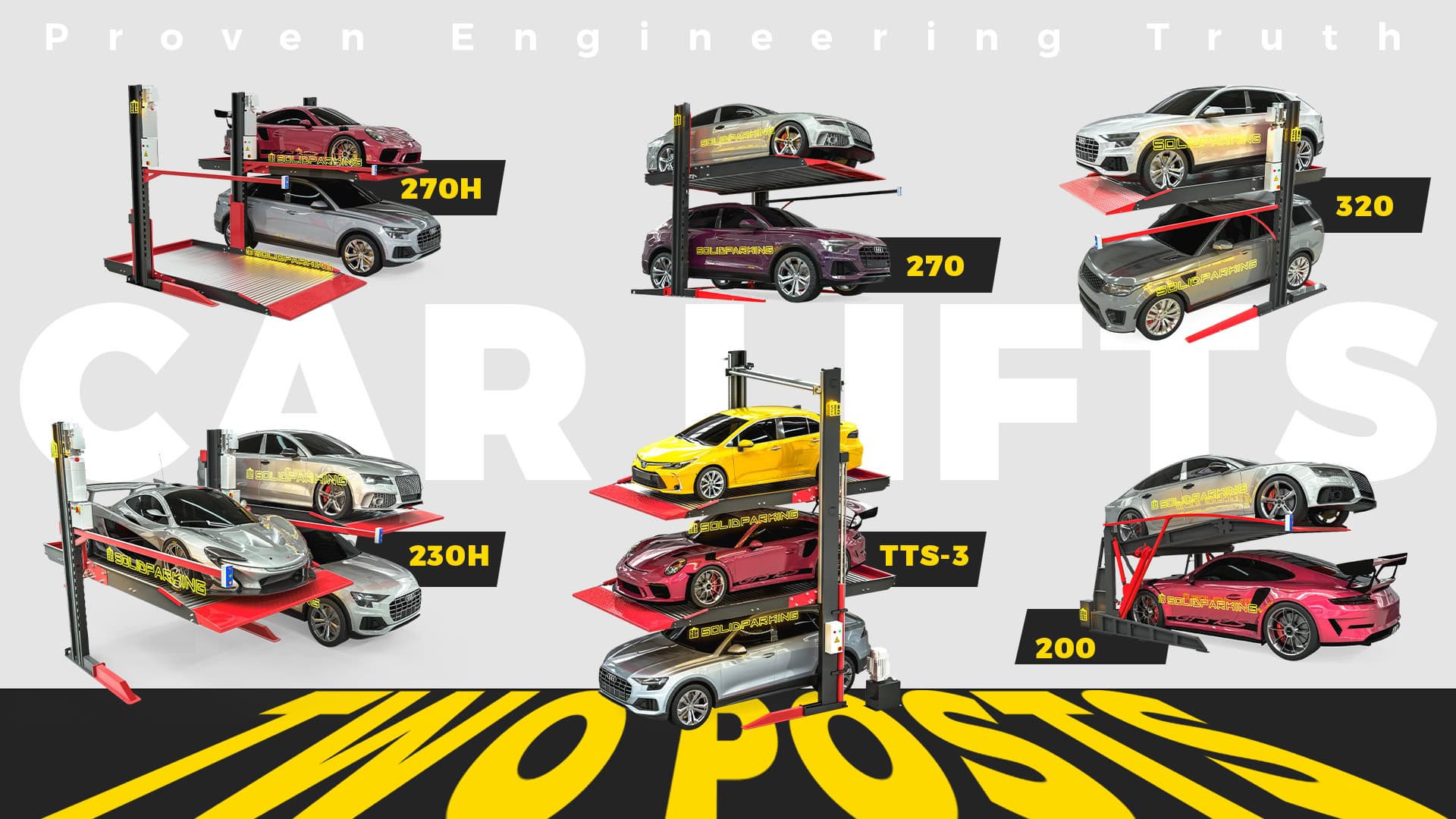

SolidParking Two-Post Model Comparison

Choosing the right two post parking lift model depends on vehicle weight, available ceiling height, platform dimensions, and the intended parking arrangement. SolidParking offers several configurations for different residential and commercial applications.

The following table provides an initial selection reference. It is not a substitute for the latest model-specific technical datasheets.

ModelRated CapacityMain Design / Application Consideration
TP-2002,000 kgTilting platform for low-ceiling applications
TP-230H2,300 kgSingle-cylinder configuration; selected projects may use shared-post layouts
TP-270H2,700 kgSingle-cylinder configuration with shared-post applications
TP-2702,700 kgDual-cylinder configuration; shared-post layout available
TP-3203,200 kgHigher-capacity configuration for suitable heavier vehicles

TP-200: For Projects with Limited Ceiling Height

The TP-200 uses a tilting platform to address certain low-clearance parking conditions.

It may be considered for residential garages and retrofit projects where vertical clearance is restricted.

Its current minimum ceiling-height specification is 2,900 mm. Actual suitability still depends on vehicle height, site obstructions, and the complete installation layout.

TP-230H: A Practical Parking Configuration

The TP-230H is a single-cylinder parking lift with a rated capacity of 2,300 kg.

It can be considered for projects where the vehicle weight and platform requirements fall within its specifications. Shared-post installation may also be available in compatible layouts.

TP-270H: Shared-Post Applications

The TP-270H has a rated capacity of 2,700 kg and uses a single-cylinder configuration.

Its shared-post design makes it relevant to projects where multiple parking units need to be arranged in a coordinated row.

TP-270: Dual-Cylinder Configuration

The TP-270 uses a dual-cylinder configuration and has a rated capacity of 2,700 kg.

It can be considered for suitable residential and commercial parking projects. The final choice should be based on vehicle requirements, site dimensions, and the approved equipment layout.

TP-320: Higher Rated Capacity

The TP-320 has a rated capacity of 3,200 kg.

It may be considered when the expected vehicle weight exceeds the capacity of lower-rated models, provided the vehicle dimensions and all other operating requirements are also compatible.

A higher rated capacity does not automatically make a model suitable for every SUV or pickup truck. Always check the vehicle’s actual weight and dimensions against the manufacturer’s specifications.

Explore the complete SolidParking Two Post Car Parking Lift range to review available configurations.

Installation Requirements: Foundation, Clearance & Electrical Planning

A successful installation begins with site coordination. The equipment layout, concrete foundation, electrical supply, and vehicle access should be reviewed together.

Foundation and Concrete Conditions

The foundation must be suitable for the loads and anchor requirements of the selected model.

Before installation, the project team should confirm:

  • Concrete thickness and specified strength.

  • Slab condition and levelness.

  • Anchor locations and installation details.

  • Whether the slab contains cracks, joints, or embedded services.

  • Whether the existing floor structure is suitable for the proposed equipment.

There is no single concrete thickness that can safely be applied to every two-post parking lift. Requirements vary by model and site conditions.

The manufacturer’s installation drawing and engineering review should determine the final foundation specification.

Ceiling and Surrounding Clearance

The layout should account for more than the lift’s overall height.

Check the available clearance above the upper vehicle, the movement of the lifting platform, nearby beams, pipes, sprinklers, lights, and garage doors.

Also review the side and rear clearances needed for vehicle access and equipment operation.

Electrical Requirements

Electrical specifications vary by model and destination market.

Confirm the required:

  • Supply voltage.

  • Single-phase or three-phase power.

  • Motor power.

  • Circuit protection.

  • Control-system requirements.

  • Electrical installation standards applicable to the project location.

The electrical supply should be confirmed before installation rather than assumed from another model’s specifications.

Safety Standards and Technical Documentation

For projects in North America, the Automotive Lift Institute (ALI) provides information on automotive lift safety, testing, and certification.

Its published information on ANSI/ALI ALCTV:2025 describes requirements covering the design, construction, testing, and validation of automotive lifts, including parking lifts within the standard’s scope. The 2025 edition is scheduled to take effect on April 1, 2027.

The standard’s applicability depends on the equipment type and local requirements. Buyers should confirm the applicable standard, certification status, and authority requirements for their specific project. Do not assume that a general CE or ISO statement is equivalent to product certification under a particular North American standard.

What Affects the Cost of a Two Post Parking Lift?

The total cost of a two post parking lift depends on more than the equipment itself. Model selection, project dimensions, installation conditions, shipping, and the required number of parking positions all influence the final investment.

The main cost factors include:

1. Equipment model and capacity

Different models have different rated capacities, lifting arrangements, and platform designs.

2. Number of parking positions

A single-unit installation and a multi-bay project may require different layouts, structural arrangements, and installation planning.

3. Shared-post configuration

Where compatible models can share posts, the overall equipment arrangement may change. The potential savings depend on the approved layout and project requirements.

4. Site preparation

Concrete work, anchor installation, electrical preparation, and any required modifications to the existing garage can affect the total project cost.

5. Shipping and installation

Transportation, destination, installation conditions, and commissioning requirements should be included in the project budget.

6. After-sales support

Warranty terms, spare-parts availability, technical assistance, and maintenance arrangements are also important when comparing suppliers.

For an accurate quotation, provide the project location, required parking capacity, vehicle types, and site dimensions. This allows the supplier to assess the appropriate configuration instead of quoting an unsuitable standard package.

Buyer Checklist

  • Have the actual ceiling height and overhead obstructions been measured?
  • Are the expected vehicle weights within the model’s rated capacity?
  • Do the platform dimensions accommodate the target vehicles?
  • Is the upper-vehicle retrieval sequence acceptable?
  • Is there sufficient space for vehicle approach and maneuvering?
  • Has the concrete foundation been reviewed against the model’s requirements?
  • Are the anchor and electrical specifications confirmed?
  • Is shared-post installation required or available?
  • Has the supplier provided technical drawings and installation documentation?
  • Are commissioning, maintenance, and after-sales support clearly defined?

Completing these checks before ordering can help reduce layout changes, installation delays, and mismatches between the equipment and the intended application.

Frequently Asked Questions

1. What is the difference between a two-post parking lift and a two-post car service lift?

A two-post parking lift typically uses a platform to support a vehicle for storage. A conventional two-post automotive service lift usually uses lifting arms to engage designated vehicle lifting points so technicians can work underneath the vehicle.

Although both systems have two vertical posts, their structures, operating purposes, and safety requirements can differ.

2. How much ceiling height does a two post parking lift require?

The required ceiling height for a two post parking lift depends on the model, platform design, vehicle height, and lifting travel.

For example, SolidParking’s TP-200 has a current minimum ceiling-height specification of 2,900 mm. Other models may require different clearances.

Always check the model-specific drawing and actual site conditions before selecting equipment.

3. Can a two post parking lift accommodate SUVs and electric vehicles?

It can, provided the vehicle’s weight and dimensions are within the selected model’s specifications.

SUVs and electric vehicles can be heavier or larger than standard passenger cars. Check rated capacity, platform dimensions, vehicle height, and the manufacturer’s permitted loading conditions before installation.

4. Can multiple two post parking lifts share support posts?

Some models support shared-post configurations, allowing compatible adjacent units to use common intermediate posts.

This can improve the use of horizontal space in multi-bay projects. However, shared-post arrangements must follow the manufacturer’s approved structural layout and installation requirements.

5. What foundation is required for a two post parking lift?

Foundation requirements depend on the selected model and the existing slab conditions.

Concrete thickness, concrete strength, anchor specifications, slab condition, and load-bearing capacity must be checked against the manufacturer’s installation drawings and engineering requirements.

A generic foundation figure should not be used as a substitute for model-specific guidance.

6. Do I need to move the lower vehicle to retrieve the upper vehicle?

For many conventional two-level parking lifts, the lower vehicle must be moved before the upper platform can be lowered.

The exact retrieval sequence depends on the equipment configuration. If independent vehicle access is a priority, discuss the operating requirements with the supplier before selecting a system.

Plan Your Two Post Parking Lift Project with SolidParking

Choosing a parking lift is not just about adding another parking position. It is about finding a configuration that fits the available space, vehicle requirements, structural conditions, and daily operating needs.

SolidParking provides customized parking equipment and engineering support for residential garages, commercial parking facilities, dealerships, and property development projects.

Share your site dimensions, required parking capacity, vehicle types, and project location with our team. Our engineers can review the layout, assess suitable configurations, and help identify the right two-post parking lift for your project.

Contact SolidParking for a project-specific layout review.

qrcode
