PTP-2 Pit Parking Lift: The Smart Underground Storage Choice for Developers

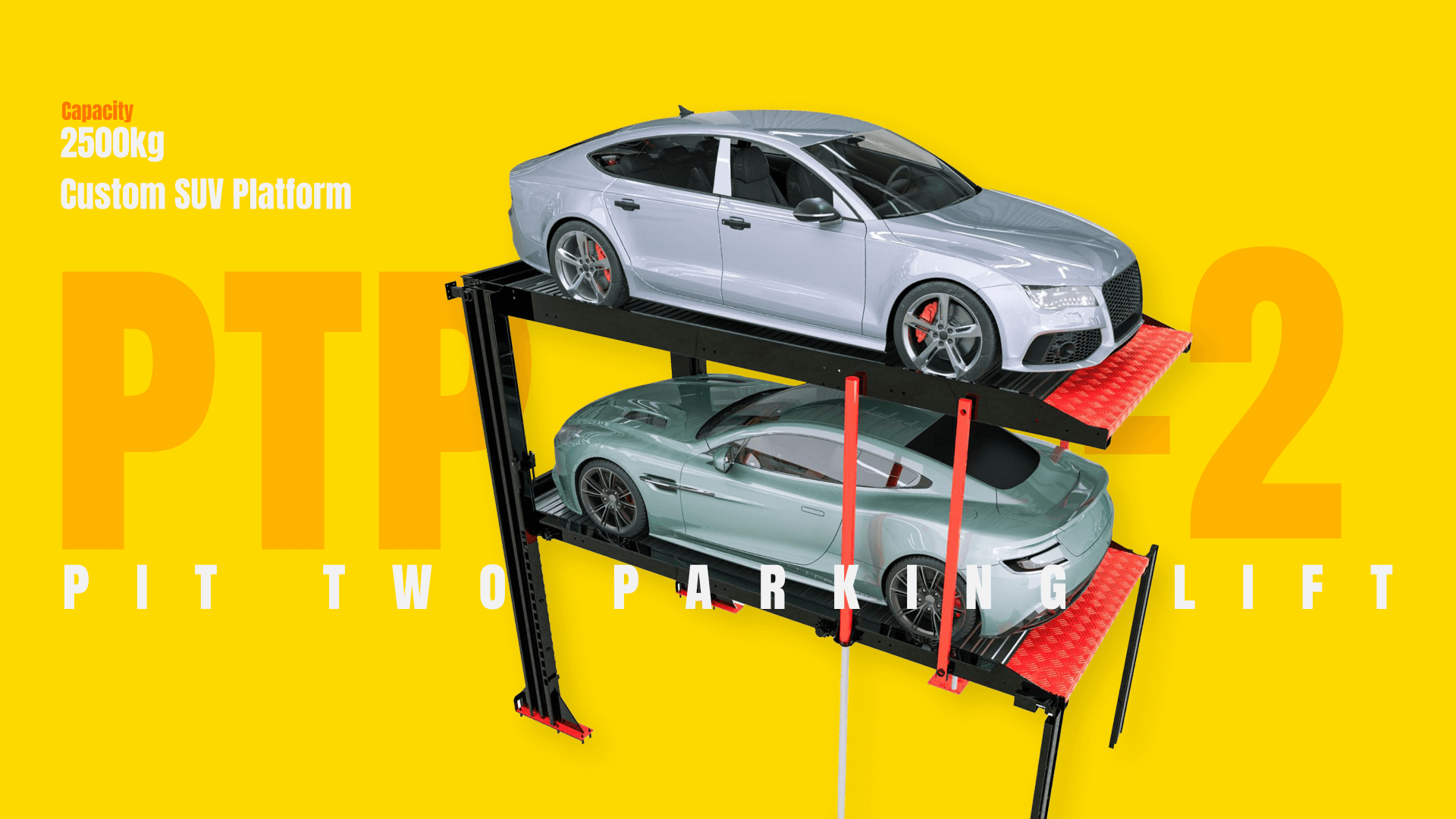

PTP–2 Two-Post Pit Parking Lift
If you’re in the business of building spaces, you’re also in the business of solving spatial tension. Every square meter matters. Every centimeter saved is cost deferred. Every added parking space is either a tick on zoning compliance or a competitive differentiator in a dense urban landscape.
So, here’s the big question: What if you could double your parking capacity—without expanding your footprint, altering your facade, or busting your budget?
Meet the PTP–2 Two-Post Pit Parking Lift—a semi-automatic, underground car stacking system engineered for the kind of real estate math developers understand: maximize ROI, minimize build-up
What Is the PTP–2 Pit Parking Lift and Where Does It Fit?
Designed for projects where aesthetics, access, and efficiency all have to coexist.
The PTP–2 is a highly efficient Two-Post Pit Parking Lift hydraulic system, installed in a shallow pit, that enables you to vertically stack two cars in the same surface-level bay. One car goes into the pit. The other parks on top, flush with the ground. When not in use, the entire structure disappears into the floor.
Unlike bulky four-post lift towers or high-maintenance automatic puzzle systems, the PTP–2 Pit Parking Lift sits quietly underground, waiting to be activated—and never competing with your architecture. (M.
🎯 Who Is This For?
If you’re managing or designing for any of these, the PTP–2 is a strategic fit:
| Project Type | Why It Works | |
|---|---|---|
| Urban infill apartments | Turn a 5-space lot into 10, without a new floor slab | |
| Private villas or residences | Luxury feel without surface clutter | |
| Mixed-use or retail parking | Add premium stackable bays where land is limited | |
| Hospitality or boutique hotels | Offer secure guest parking without sacrificing curb appeal | |
| Retrofit projects |
|
What Developers and Architects Value Most
We’re not just stacking cars here—we’re solving parking density under real-world conditions. Here’s how the PTP–2 Two-Post Pit Parking Lift hits the mark:
| Pain Point | How PTP–2 Solves It |
|---|---|
| Limited lot size | Doubles capacity with zero extra land use |
| Tight ceiling heights | Designed for garages with vertical restrictions |
| Long permitting timelines | Easier approvals than fully automated systems |
| Maintenance headaches | Fewer moving parts = lower servicing overhead |
| Budget limitations | Offers automated utility without automated price tags |
“This isn’t a flashy tech play—it’s a lean, mechanically elegant solution that adds real value per square meter.”
— Head of Planning, Mid-rise Developer (Singapore)

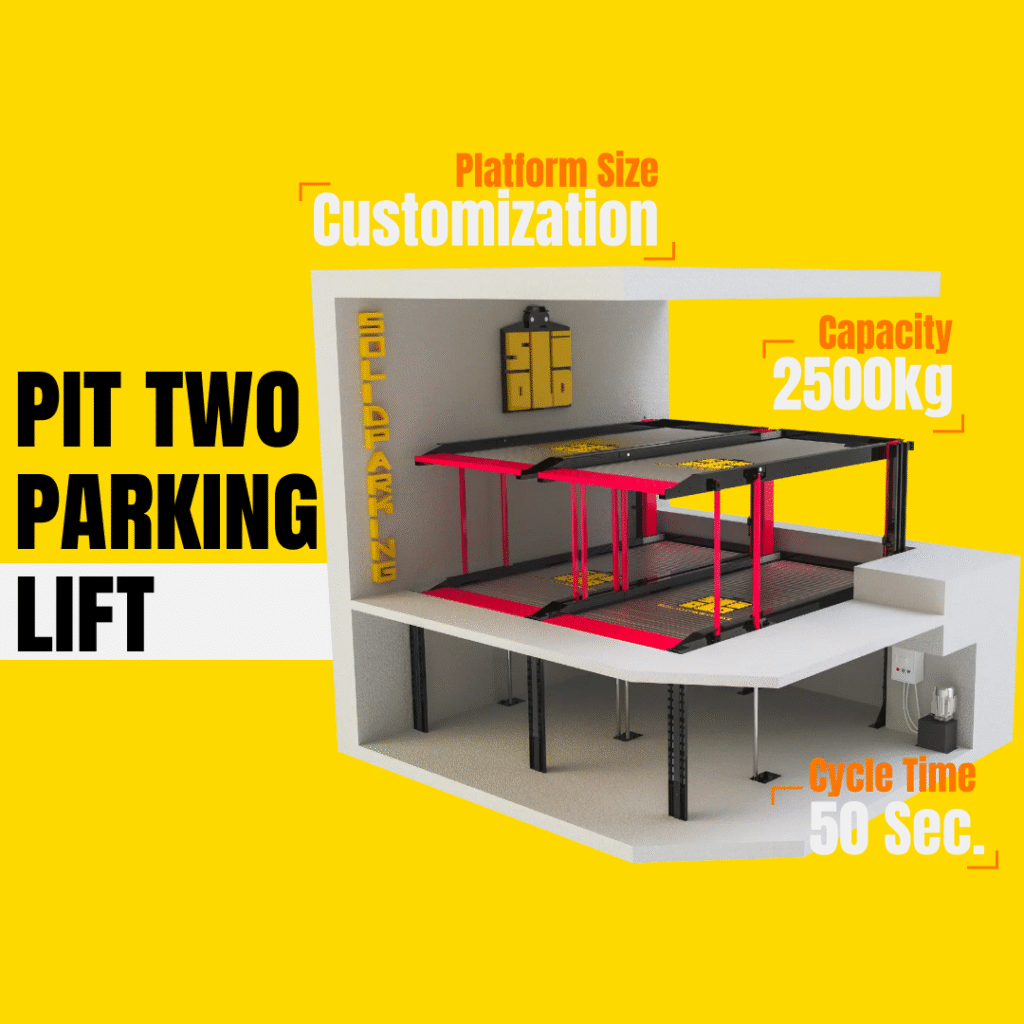

Technical Snapshot (for Your Project Specs)
| Parameter | Value |
|---|---|
| Max Lifting Capacity | 2,500 kg (supports most SUVs) |
| Vehicle Height Range | 1,550–2,050 mm |
| Vehicle Width | Up to 1,850 mm |
| Vehicle Length | Up to 5,000 mm |
| Pit Depth Required | ≥ 2,000 mm |
| Cycle Time | ~50 seconds |
| Power Options | 1-Phase or 3-Phase, 2.2–5.5 kW |
| Control | Key switch, wireless or remote panel |
Can You Access Both Cars Independently?
Let’s clear this up—because it’s important for planning your Pit Parking Lift layout.
With the PTP–2, the top car is always accessible at ground level. However, to retrieve the lower car, you’ll need to temporarily move the top one (dependent access).
Why Is That Acceptable?
Because it allows the system to be:
· Mechanically simpler (lower cost, fewer failures)
· Faster to install (shallow pit, preassembled parts)
· More compact (no exterior structural frames)
· Easier to permit (especially in tight urban environments)
If your scenario requires fully independent access to both vehicles, then you’ll need a four-post stacker or puzzle system—at double or triple the investment.
How It Performs in Real Projects
(Duplicate testimonials from the original text have been cleaned up for a professional presentation)
“In a 12-car underground lot, we installed 6 PTP–2s. It gave us 12 stacked spots, with only 6 surface bays. That added $200,000 in salable area.”
— Property Developer, Eastern Europe
“The shared control box design helped us reduce our electrical load distribution and saved us serious cable work.”
— MEP Consultant, Dubai
“The system just fits. It doesn’t dominate the space. We used it in a villa cluster project—residents barely notice it’s a machine when the top platform is parked.”
— Architect, Residential Projects (Taiwan)
👀 Don’t Just Take Our Word For It—Watch the PTP–2 in Action
👉 Hit play below to see the Pit Parking Lift system in motion:
Installation & Lifecycle Considerations
You’re a pro, so here’s what you need to know about preparing for a Two-Post Pit Parking Lift:
· Foundation: ≥ 2,000 mm pit with proper drainage and reinforced concrete
· Height Clearance: 3.2–3.5 meters total required from pit base to ceiling
· Operation: Simple key switch or remote; optional wireless control
· Maintenance: Minimal; annual fluid check, monthly lock inspection
· Lead Time: Shorter than most fully automated options
Why This Lift Beats the Math
If you’re bidding on a project where parking units directly affect sales price, leaseability, or permit success, the PTP–2 Pit Parking Lift turns space into ROI.
· Gain up to 40–60% more parking slots
· Avoid structural rework or expansion
· Add a premium security feature for residential clients
· Make your design more competitive in RFPs
This isn’t a gimmick. It’s an infrastructure advantage hiding in plain sight.
📩 Ready to Stack Smarter?
The PTP–2 underground parking lift is your quiet enabler. It makes space where there was none. It keeps your design sleek, your permitting smooth, and your project more profitable.
Contact SolidParking for CAD files, specification sheets, or a tailored quote.
You build the future—we’ll help you park it better.
