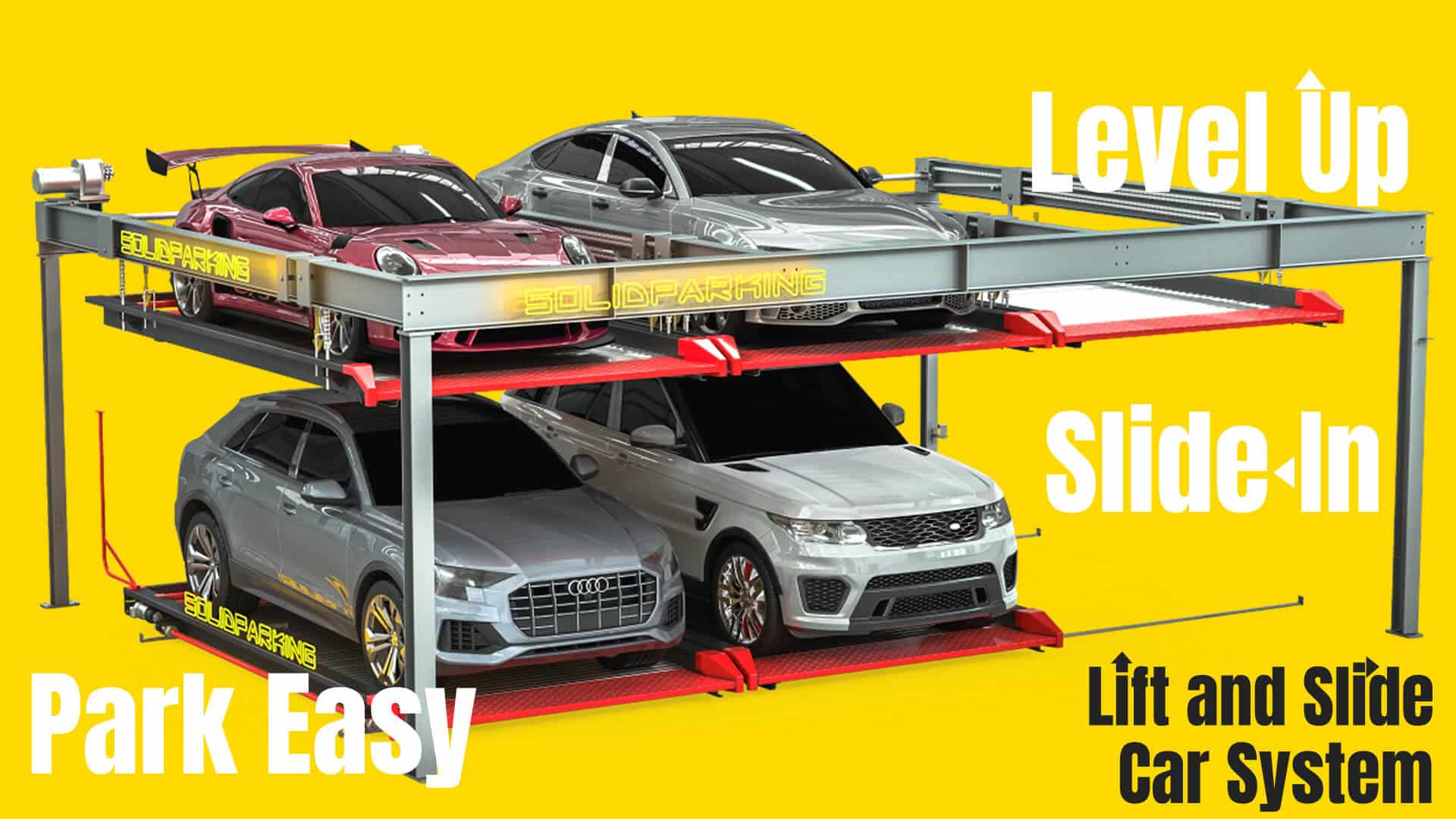

The lift and slide car system is a mechanical parking solution that combines vertical lifting and horizontal sliding of platforms to multiply parking capacity in a compact space.
Think of it as a three-dimensional puzzle:
· Lift: A platform raises or lowers a vehicle to a specific tier.
· Slide: The platform then shifts laterally, clearing access for additional cars.
By stacking vehicles vertically and arranging them side-by-side, this system can achieve 2–6 times the density of a conventional surface lot.
🔧 Lecture Note: From an engineering standpoint, the critical challenge is synchronization — ensuring smooth transitions between lift and slide motions without mechanical interference.
Urbanization is accelerating. According to UN data, 68% of the world’s population will live in cities by 2050. This surge brings parking challenges:
· Land Scarcity: Surface parking consumes high-value urban plots.
· Construction Cost: Deep basements are expensive and disruptive.
· Traffic Pollution: Studies show up to 30% of inner-city traffic comes from drivers circling for parking.
The lift and slide car system addresses these pain points by:
· Increasing capacity without expanding land area
· Reducing excavation costs (vs. multi-level garages)
· Lowering emissions by minimizing vehicle movement inside garages
📊 Example: The SH Campus Puzzle Parking System delivered a strong ROI by creating 17 parking spaces within a compact footprint, significantly reducing the cost per parking stall compared to traditional construction.
Its durable galvanized structure and low-maintenance operation ensure long-term value, minimizing lifecycle expenses while maximizing revenue potential.
Urbanization is accelerating. According to UN data, 68% of the world’s population will live in cities by 2050. This surge brings parking challenges:
· Land Scarcity: Surface parking consumes high-value urban plots.
· Construction Cost: Deep basements are expensive and disruptive.
· Traffic Pollution: Studies show up to 30% of inner-city traffic comes from drivers circling for parking.
The lift and slide car system addresses these pain points by:
· Increasing capacity without expanding land area
· Reducing excavation costs (vs. multi-level garages)
· Lowering emissions by minimizing vehicle movement inside garages
From an engineering perspective, the system has two primary mechanisms:
· Lifting Units
Hydraulic cylinders or electric motors provide vertical motion.
Safety locks engage at every height to prevent free fall.
· Sliding Tracks
Rails, chains, or rack-and-pinion mechanisms enable lateral movement.
Anti-collision sensors ensure cars are precisely aligned.
Designers must account for:
· Load Distribution: Heavier EVs require reinforced platforms (≥2,500 kg capacity).
· Speed vs. Comfort: Lifting speed must balance efficiency (0.1–0.15 m/s) with passenger comfort.
· Redundancy: Dual safety locks and backup drives are standard in premium systems.
The choice of drive system defines cost, performance, and long-term reliability.
Feature | Hydraulic Drive | Electric Drive |
Load Capacity | High (up to 4,000 kg) | Moderate (up to 2,500 kg) |
Smoothness | Excellent | Good |
Maintenance | Requires fluid checks, seals | Chains/ropes require inspection |
Cost | Higher upfront | Lower upfront |
Best Use Case | Heavy SUVs, underground pits | Light sedans, cost-sensitive projects |
📖 Reference: A ResearchGate study (2024) demonstrated that hydraulics outperform electric drives in space-restricted urban environments due to their compact cylinders and high force density.
Meanwhile, Academia.edu research highlights the advantages of PLC-controlled electric lifts in improving reliability and precision.
The pit-type lift and slide car system adds another dimension to efficiency by using subterranean pits.
How It Works
· A car parks on the ground-level platform.
· The platform descends into a pit, clearing the surface for another vehicle.
· Additional cars are stacked above using sliding lifts.
Advantages
· Preserves Surface Usability: Ground level remains open for pedestrians or additional cars.
· Aesthetic Integration: Cars are hidden underground, leaving clean courtyards.
· Height Restriction Compliance: Useful in residential zones with limited building height.
Engineering Challenges
· Drainage & Waterproofing: Pits must be sealed against groundwater infiltration.
· Soil Conditions: Poor soil may require piling or reinforcement.
· Safety Access: Emergency ladders and technician entry points are mandatory.
This approach is especially popular in luxury villas, boutique hotels, and urban plazas.
Mitsubishi Heavy Industries: Cell Park
A puzzle-style system where pallets move horizontally and vertically in a matrix.
· Throughput: Up to 90 cars/hour
· Capacity: 100–500 cars
· Used in Tokyo business districts
👉 Read Mitsubishi’s Cell Park story
Mineta Institute: Robotic “Rover” Transfer Systems
Instead of fixed rails, small automated rovers move under cars, repositioning them dynamically.
· Advantage: Reduces construction costs
· Limitation: Still in pilot phase
Europe & Asia Applications
· Seoul, South Korea: Pit-type lift and slide used in villa garages.
· Germany: Underground pit systems integrated with EV charging hubs.
Modern lift and slide car systems are no longer purely mechanical — they are cyber-physical systems.
· PLCs (Programmable Logic Controllers): Synchronize lifts, detect overloads, and prevent unsafe operations.
· IoT Sensors: Monitor vibration, oil pressure, and temperature for predictive maintenance.
· AI Scheduling Algorithms: Reduce wait times by optimizing platform movement during peak demand.
📖 Reference: A 2015 study on genetic algorithms for parking elevator scheduling showed wait time reductions of up to 25% in busy multi-story garages.
While promising, these systems must navigate real-world constraints:
· Maintenance Costs: Hydraulic leaks or chain wear can be costly if neglected.
· User Familiarity: Drivers may feel uneasy trusting automation.
· Fire & Seismic Safety: Structures must comply with local building codes.
· ROI Pressure: Upfront investment is high, though offset by land savings.
A mechanical parking solution combining lifting and sliding platforms to maximize vehicle storage in compact spaces.
Hydraulic offers higher load and smoother operation, while electric is more affordable and easier to maintain.
Common in luxury homes, hotels, and zones with building height restrictions.
Modern systems include dual safety locks, sensors, emergency stop controls, and fire-resistant design features.
Varies by region, but typically $8,000–$15,000 per parking space, depending on drive type and pit excavation.
The lift and slide car system is more than a parking technology — it is a strategic tool for reclaiming urban land.
· Hydraulic systems will dominate heavy-duty and pit-type designs.
· Electric systems will evolve with smart PLC control and AI optimization.
· Integration with EV charging and renewable energy storage will make these systems part of smart city infrastructure.
🔧 Closing Lecture Note: As engineers and architects, our task is not just to park cars efficiently, but to design systems that harmonize with the urban ecosystem — balancing technology, safety, and sustainability.
